Lanyard

A lanyard is the flexible line, strap or cable that connects a worker’s full body harness to an anchor point in a fall arrest or ...
Kyle Parry
Kyle Parry
construction safety lanyard « Back to Glossary Index

A lanyard is the flexible line, strap or cable that connects a worker’s full body harness to an anchor point in a fall arrest or fall restraint system. Construction lanyards are typically 6 ft long or less and often include a shock-absorbing pack to reduce the force on the body during a fall.

How a lanyard fits into a fall arrest system

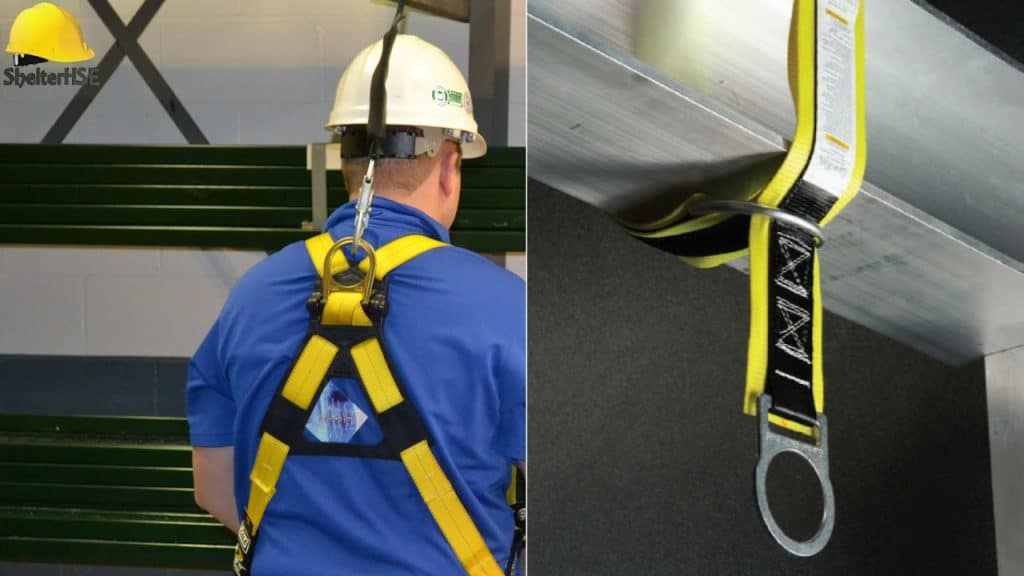

Fall protection is often taught as the ABCs: Anchorage, Body support (a full body harness) and Connector. The lanyard is the connector. For fall arrest it clips to the dorsal D-ring between the shoulder blades at one end and to the anchor, beam strap or rope grab at the other.

In the US, OSHA 1926.502(d) says a personal fall arrest system must:

  • limit free fall to 6 ft and stop the worker before they hit a lower level;
  • limit the arresting force on a harness to 1,800 lb and the deceleration distance to 3.5 ft;
  • use anchors that hold 5,000 lb per worker, or are designed by a qualified person with a safety factor of at least two;
  • use locking snaphooks only.

In Canada, lanyards and energy absorbers are covered by CSA Z259 standards plus provincial rules. In the UK and EU, look for EN 354 (lanyards) and EN 355 (energy absorbers).

Types of lanyards

Type What it does Typical use
Shock-absorbing lanyard A pack tears open to slow the fall and cut the force General fall arrest with the anchor at or above the D-ring
Twin-leg (Y) lanyard Two legs so one is always tied off Moving between anchors: steel, scaffold, towers
Self-retracting lanyard (SRL) Reel pays out and locks on a sudden pull Less clearance below; leading-edge models for sharp edges
Restraint lanyard Fixed length that stops you reaching the edge Fall restraint on roofs and slabs
Positioning lanyard Holds you in place to work hands-free Rebar walls, poles; not fall arrest on its own
Tie-back lanyard Wraps around the anchor and clips back onto itself Where no anchor connector is installed

Tool lanyards, which tether tools to stop dropped objects, are a separate product and are never rated for people.

Fall clearance

A lanyard only works if there is room below. Required clearance adds up the free fall, the absorber’s deceleration distance, harness stretch, the worker’s height below the D-ring and a safety margin. Use the manufacturer’s clearance chart. Tying off at foot level increases free fall and needs a lanyard rated for it; if clearance is tight, an SRL is often the answer.

Inspect before every use

  • Webbing or rope: cuts, burns, fraying, chemical or paint damage.
  • Stitching intact; energy absorber cover and fall indicator not deployed.
  • Snaphooks and carabiners lock and close fully.
  • Labels readable.
  • Any lanyard that has arrested a fall comes out of service.

Never knot a lanyard, tie two together, or wrap it around a sharp edge unless the product is rated for it. Have a rescue plan before anyone ties off.

Related terms

Related templates and guides

Frequently asked questions

What is a lanyard in construction?

It is the connector in a personal fall protection system: a short line, strap or cable that links a worker’s full body harness to an anchor. Outside construction, ‘lanyard’ usually means a cord for an ID badge or keys, which is not fall protection.

How long can a fall protection lanyard be?

Most fall arrest lanyards are 6 ft or shorter, because US rules limit free fall to 6 ft and longer lines add fall distance. Some products are rated for 12 ft free fall when tying off below the D-ring. Always check the label and clearance chart.

What is the difference between a lanyard and a self-retracting lifeline?

A lanyard is a fixed length, so the worker falls its full length before the absorber works. A self-retracting lifeline stays taut on a reel and locks within a short distance, which reduces fall distance and clearance but costs more and needs regular servicing.

Can you reuse a lanyard after a fall?

No. Once a lanyard has arrested a fall, or the shock pack or fall indicator shows it has deployed, take it out of service and destroy or tag it according to your program and the manufacturer’s instructions.

Can a positioning lanyard be used for fall arrest?

No. A positioning lanyard holds you in place on a wall or pole so you can work hands-free, with very limited free fall. You still need a separate fall arrest connection unless the system is designed and rated to do both.
